HEAT SINK
| W= 7.5 ~ 21mm | ||
|
Product Name : HS-3044 Material : AL6063 Finish : Clean Size (WxHxL) : 7.5x10x7.5 mm Weight : 1 g
|
Product Name : HS-3080 Material : AL6063 Finish : Clean Size (WxHxL) : 10x9.5x10 mm Weight : 1.5 g
|

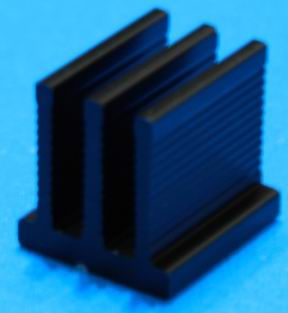

Product Name : HS-3056 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 12x13.5x13 mm Weight : 3 g
|
|

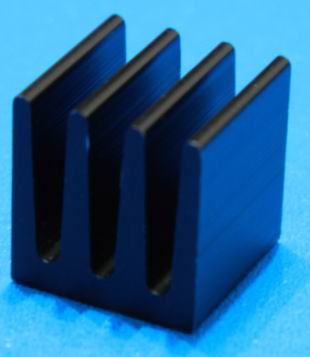

Product Name : HS-005A2 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 12.4x13x12.4 mm Weight : 3 g
|

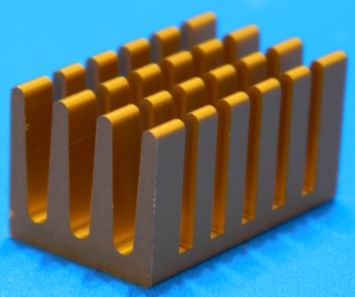

Product Name : HS-005A1 Material : AL6063 Finish : Gold Anodized Size (WxHxL) : 12.4x13x20 mm Weight : 4 g
|

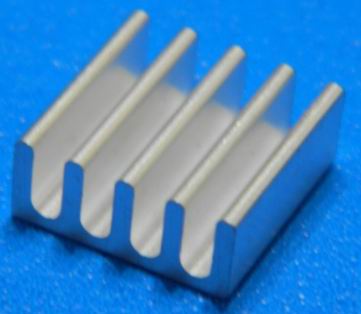

Product Name : HS-006A1 Material : AL6063 Finish : Clean Size (WxHxL) : 13x6x13 mm Weight : 2 g
|
|

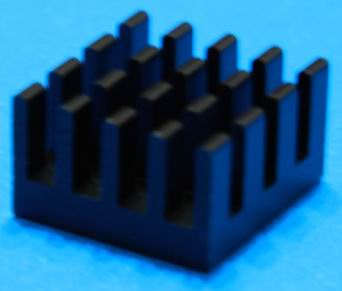

Product Name : HS-3086 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 13x9x13 mm Weight : 2 g
|

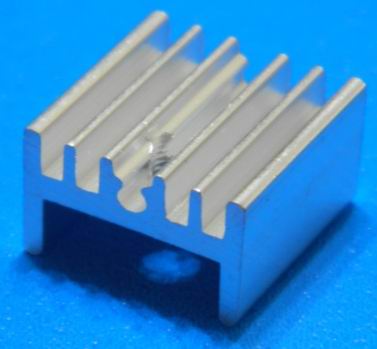

Product Name : HS-3063-16 Material : AL6063 Finish : Clean Size (WxHxL) : 16x11x16 mm Weight : 3 g
|

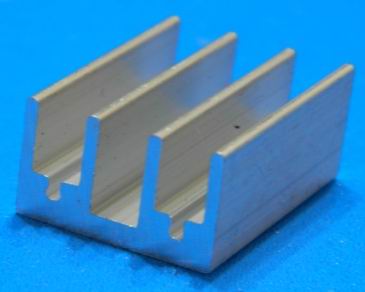

Product Name : HS-1612-20 Material : AL6063 Finish : Clean Size (WxHxL) : 16x12x20 mm Weight : 5 g
|
|

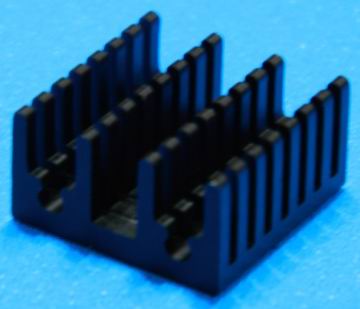

Product Name : HS-025B6-A Material : AL6063 Finish : Black Anodized Size (WxHxL) : 16.4x10x16 mm Weight : 3 g
|

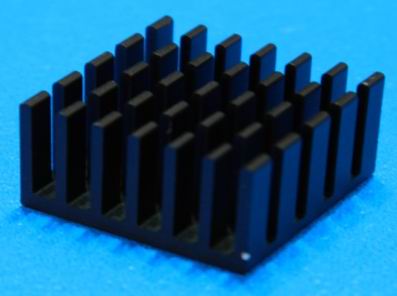

Product Name : HS-3042 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 17x9.5x17 mm Weight : 3 g
|

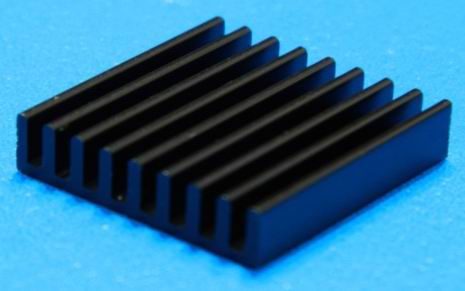

Product Name : HS-3052 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 19x5x19 mm Weight : 3 g
|
|

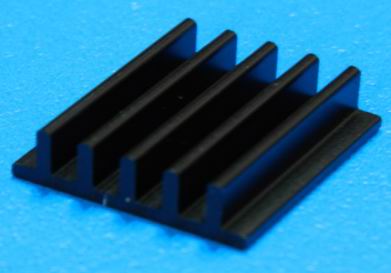

Product Name : HS-3121 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 19x6x20 mm Weight : 3 g
|

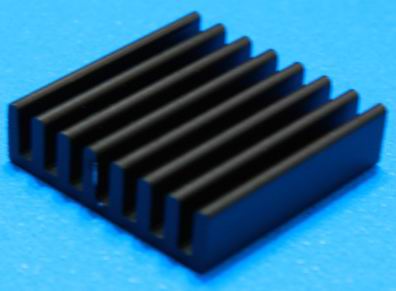

Product Name : HS-1105A1 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 20x6x20 mm Weight : 4 g
|

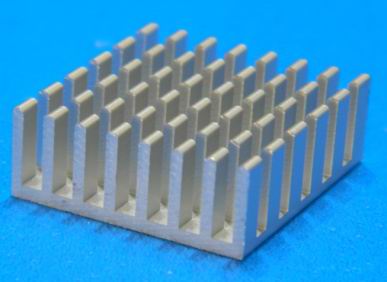

Product Name : HS-3033 Material : AL6063 Finish : Clean Size (WxHxL) : 20x9.5x20 mm Weight : 4 g
|
|

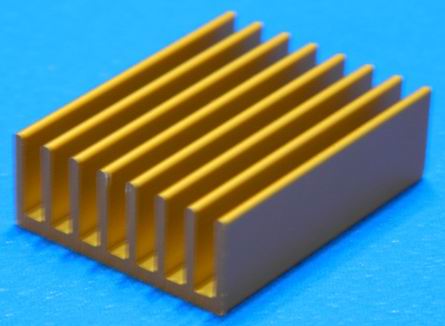

Product Name : HS-3033-25 Material : AL6063 Finish : Gold Anodized Size (WxHxL) : 20x9.5x25 mm Weight : 6 g
|

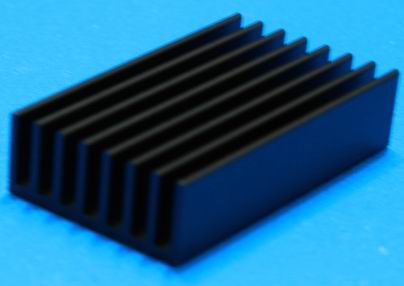

Product Name : HS-3033-33 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 20x9.5x33 mm Weight : 8 g
|

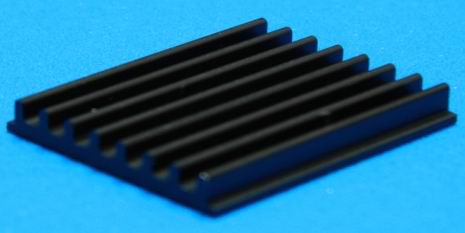

Product Name : HS-3101-25 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 21x3.5x25 mm Weight : 3 g
|
| W= 22 ~ 30mm | ||
|

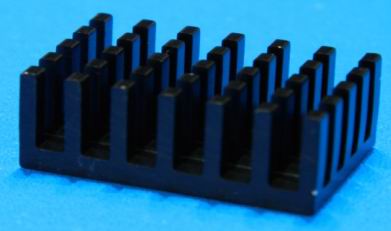

Product Name : HS-6163A1 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 22x9x14 mm Weight :3 g
|

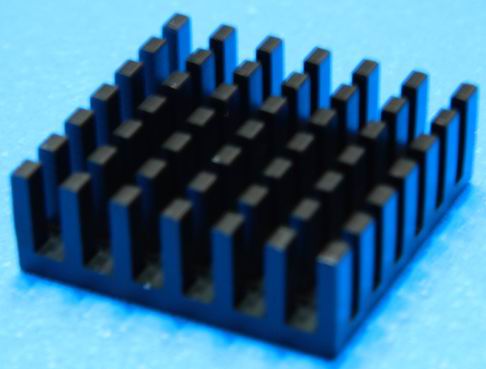

Product Name : HS-6164A1 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 22x9x22 mm Weight : 5 g
|

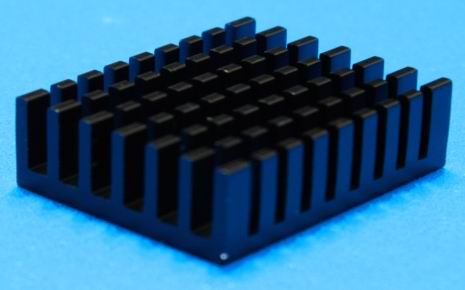

Product Name : HS-6164A1-27 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 22x9x27 mm Weight : 6 g
|
|

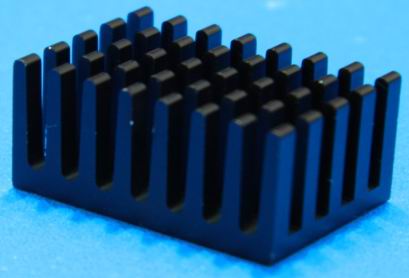

Product Name : HS-00111A3 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 22x11.7x15 mm Weight : 4 g
|

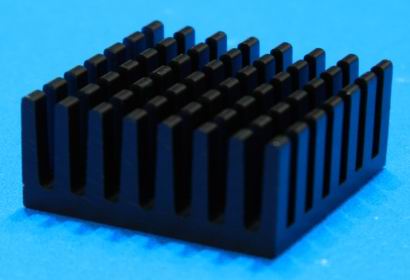

Product Name : HS-012A3 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 22x11.7x22 mm Weight : 7 g
|

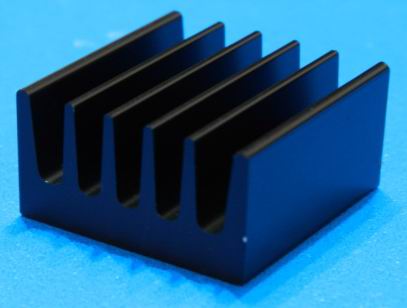

Product Name : HS-22145-22 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 22x14.5x22 mm Weight : 12 g
|
|

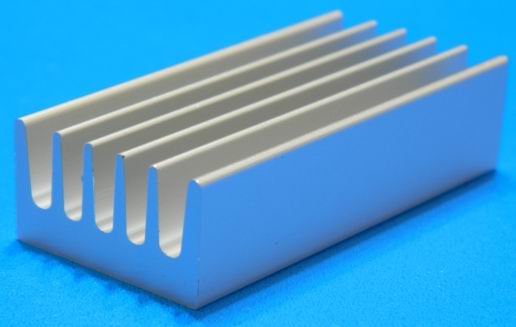

Product Name : HS-22145-45 Material : AL6063 Finish : Clean Size (WxHxL) : 22x14.5x45 mm Weight : 23 g
|

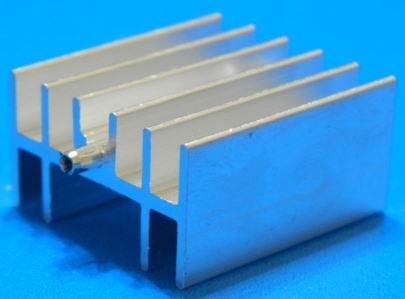

Product Name : HS-3037 Material : AL6063 Finish : Clean Size (WxHxL) : 23.5x15.5x25 mm Weight : 8 g
|

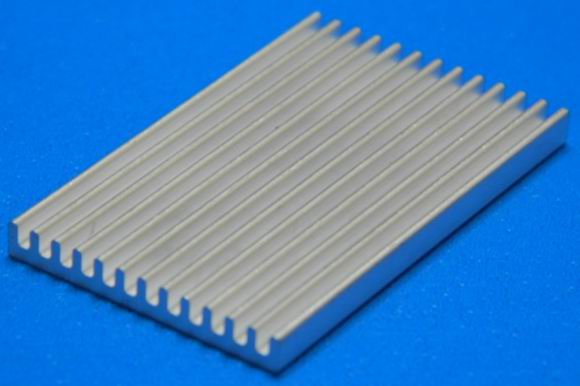

Product Name : HS-3051-40 Material : AL6063 Finish : Clean Size (WxHxL) : 25x3.5x40 mm Weight : 7 g
|
|
Product Name : HS-3067 Material : AL6063 Finish : Clean Size (WxHxL) : 25x9x25 mm Weight : 9 g
|

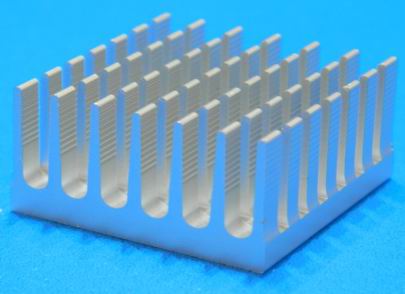

Product Name : HS-3034 Material : AL6063 Finish : Clean Size (WxHxL) : 26x14.8x26 mm Weight : 10 g
|

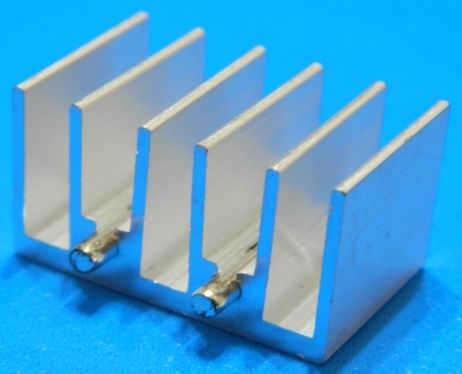

Product Name : HS-3060 Material : AL6063 Finish : Clean Size (WxHxL) : 26x16x16 mm Weight : 8 g
|
|

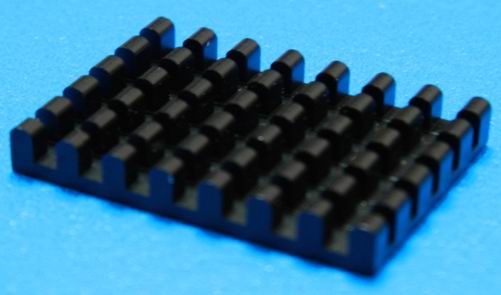

Product Name : HS-030-20 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 28x4.5x20 mm Weight : 4 g
|

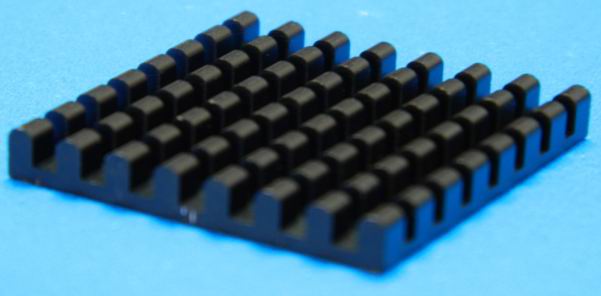

Product Name : HS-030 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 28x4.5x28 mm Weight : 5 g
|
Product Name : HS-3099 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 28x6x28 mm Weight : 6 g
|
|

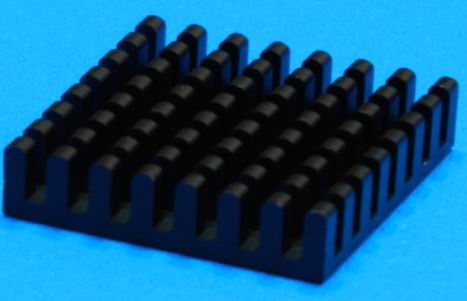

Product Name : HS-019A3 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 28x8x28 mm Weight : 8 g
|

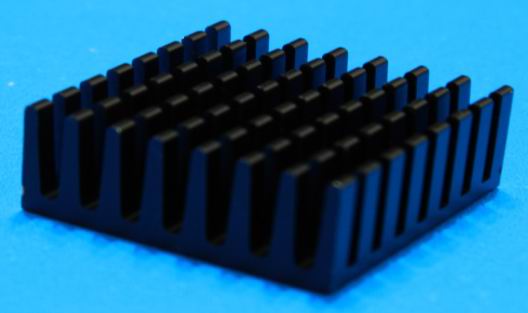

Product Name : HS-020A3-1 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 28x11.4x28 mm Weight : 10 g
|

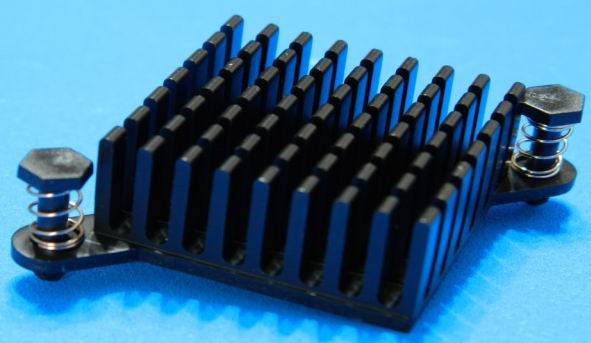

Product Name : HS-3115 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 28x12.7x28 mm Weight : 12 g
|
|

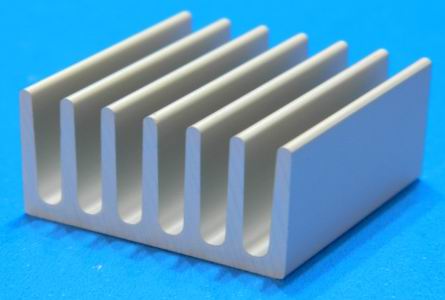

Product Name : HS-1000 Material : AL6063 Finish : Clean Size (WxHxL) : 28x15x28 mm Weight : 16 g
|

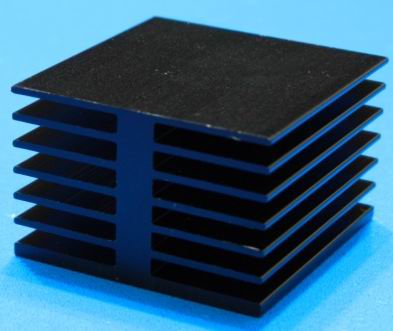

Product Name : HS-3036 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 28x22x28 mm Weight : 20 g
|

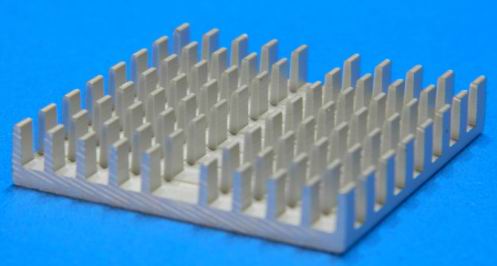

Product Name : HS-1002A3-A Material : AL6063 Finish : Clean Size (WxHxL) : 30x6.6x30 mm Weight : 6 g
|
| W= 30 ~ 50 mm | ||
|

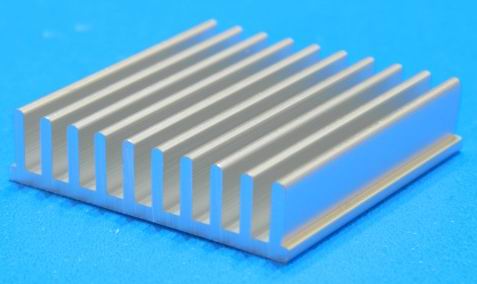

Product Name : HS-3076 Material : AL6063 Finish : Clean Size (WxHxL) : 30x8.7x30 mm Weight : 11 g
|

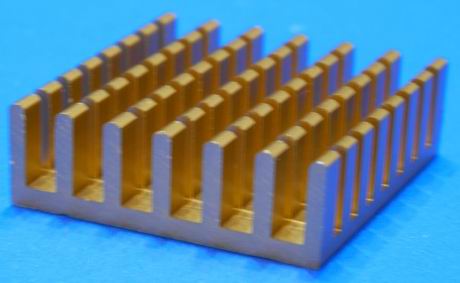

Product Name : HS-3097 Material : AL6063 Finish : Gold Anodized Size (WxHxL) : 30x12x30 mm Weight : 12 g
|

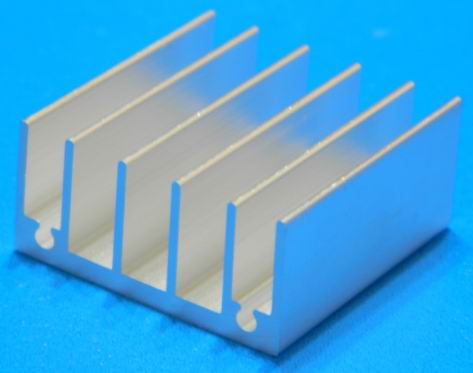

Product Name : HS-3032 Material : AL6063 Finish : Clean Size (WxHxL) : 30x15x30 mm Weight : 13 g
|
|

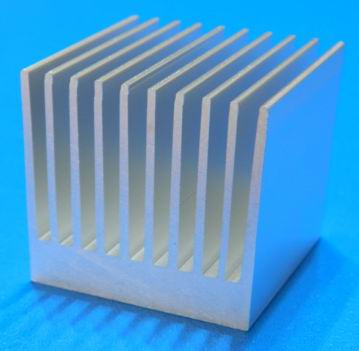

Product Name : HS-6174 Material : AL6063 Finish : Clean Size (WxHxL) : 30.2x34.5x30.2 mm Weight : 43 g
|

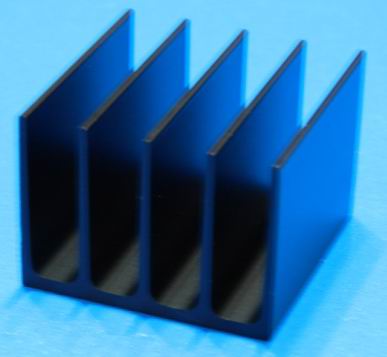

Product Name : HS-6063A1 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 32.5x27.5x32.5 mm Weight : 21 g
|

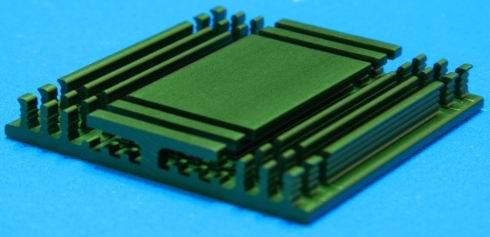

Product Name : HS-027A5 Material : AL6063 Finish : Green Anodized Size (WxHxL) : 35x6x35 mm Weight : 10 g
|
|

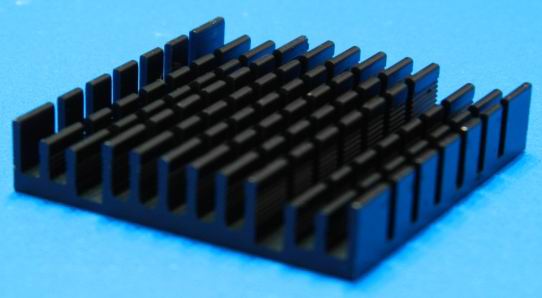

Product Name : HS-028A3 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 35x8.5x35 mm Weight : 12 g
|

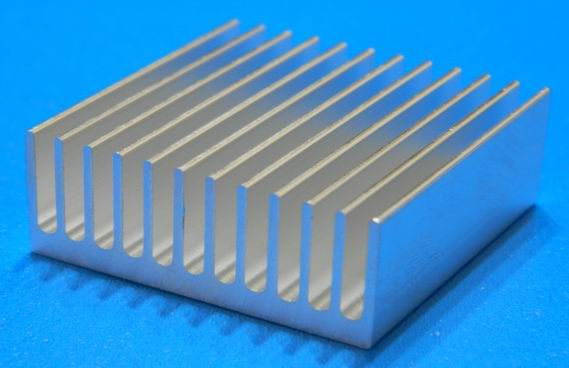

Product Name : HS-3127 Material : AL6063 Finish : Clean Size (WxHxL) : 35x15x35 mm Weight : 24 g
|

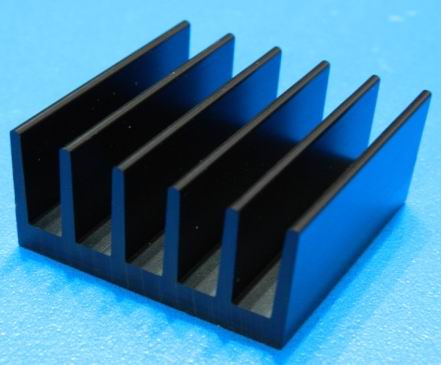

Product Name : HS-3031 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 35x20x35 mm Weight : 30 g
|
|

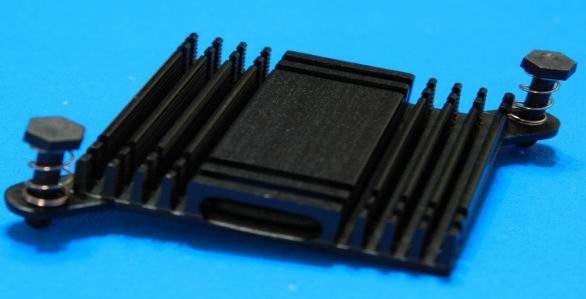

Product Name : HS-3118 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 38x6x38 mm Weight : 11 g
|

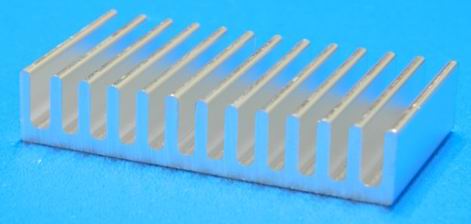

Product Name : HS-3122-20 Material : AL6063 Finish : Clean Size (WxHxL) : 38x9x20 mm Weight : 10 g
|

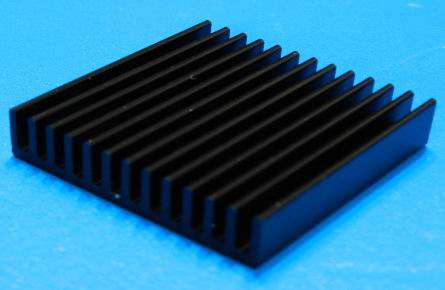

Product Name : HS-3122E Material : AL6063 Finish : Black Anodized Size (WxHxL) : 38x9x38 mm Weight : 19 g
|
|

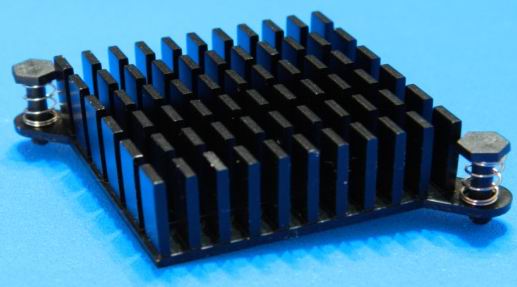

Product Name : HS-3095 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 38x13x38 mm Weight : 19 g
|

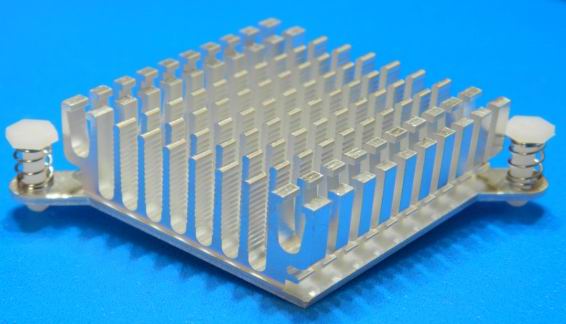

Product Name : HS-3124 Material : AL6063 Finish : Clean Size (WxHxL) : 38x15x38 mm Weight : 19 g
|

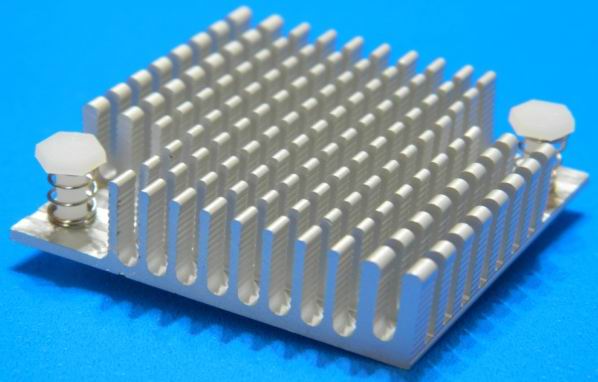

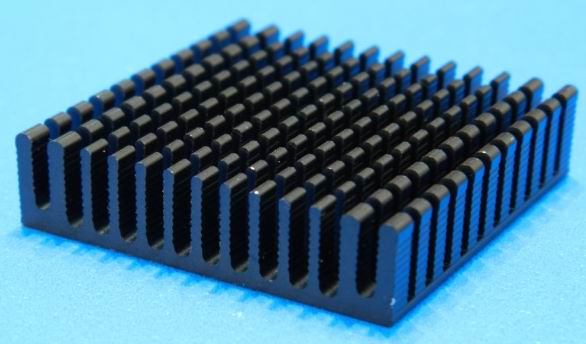

Product Name : HS-035A1-A Material : AL6063 Finish : Clean Size (WxHxL) : 40x11x40 mm Weight : 15 g
|
|

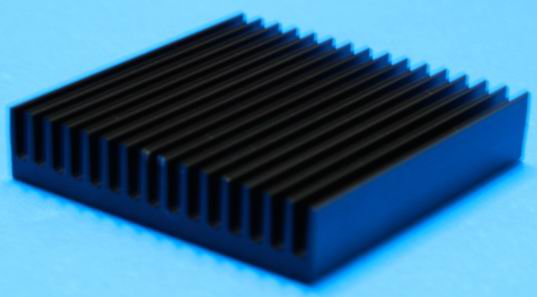

Product Name : HS-3088 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 40x10x40 mm Weight : 24 g
|
Product Name : HS-035A1-A Material : AL6063 Finish : Black Anodized Size (WxHxL) : 40x11x40 mm Weight : 17 g
|

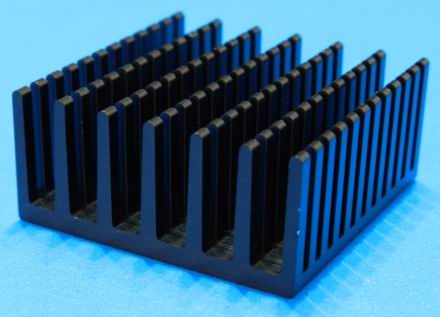

Product Name : HS-3071 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 40x20x40 mm Weight : 26 g
|
|

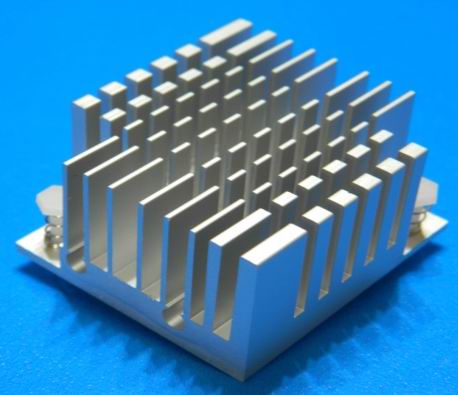

Product Name : HS-452W1-A Material : AL6063 Finish : Clean Size (WxHxL) : 40x24x45 mm Weight : 46 g
|

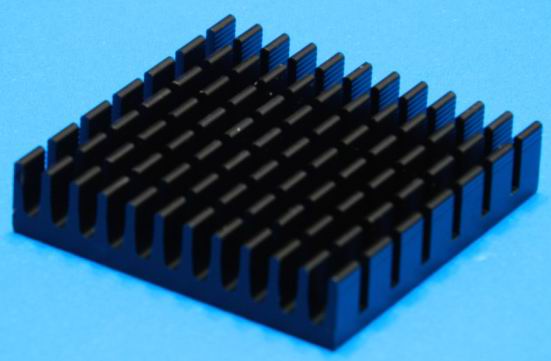

Product Name : HS-3043 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 45x10x45 mm Weight : 27 g
|

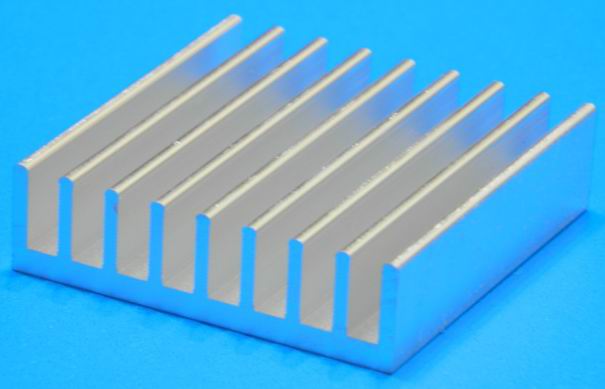

Product Name : HS-3055 Material : AL6063 Finish : Clean Size (WxHxL) : 50x17x50 mm Weight : 56 g
|
| W= 51 ~ 180 mm | ||
|

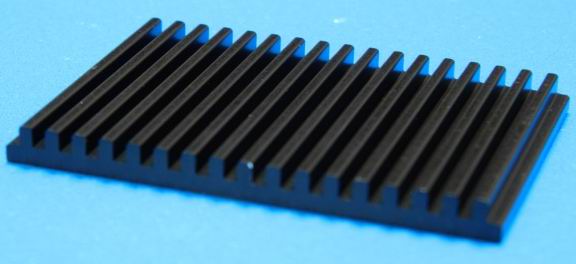

Product Name : HS-3120 Material : AL6063 Finish : Black Anodized Size (WxHxL) : 51x5x35 mm Weight : 17 g
|

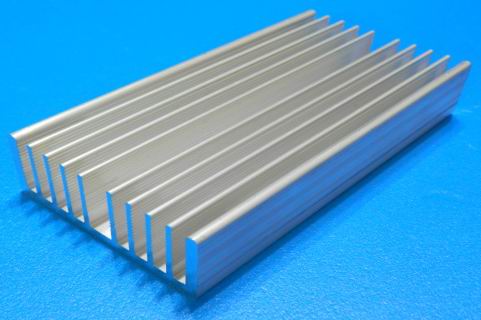

Product Name : HS-3119-100 Material : AL6063 Finish : Clean Size (WxHxL) : 51x20x100 mm Weight : 113 g
|

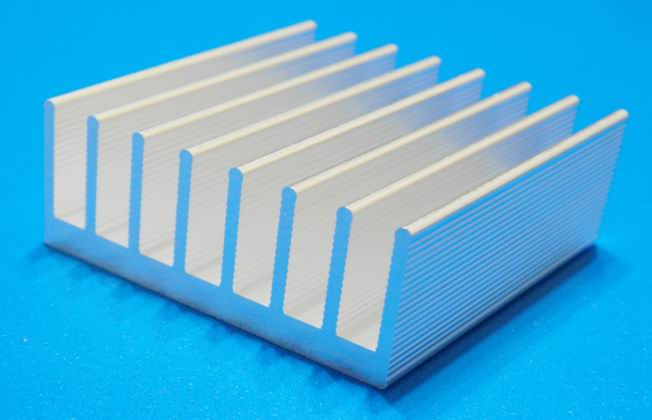

Product Name : HS-3128 Material : AL6063 Finish : Clean Size (WxHxL) : 52.2x23x52.2 mm Weight : 74 g
|
|

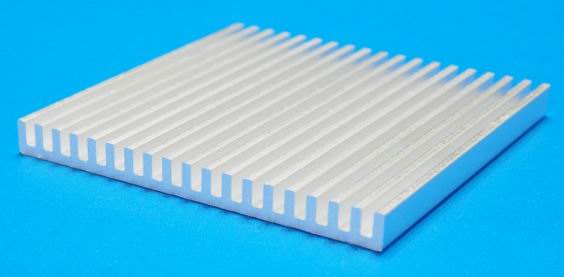

Product Name : HS-3059E Material : AL6063 Finish : Clean Size (WxHxL) : 55x6x55 mm Weight : 32 g
|

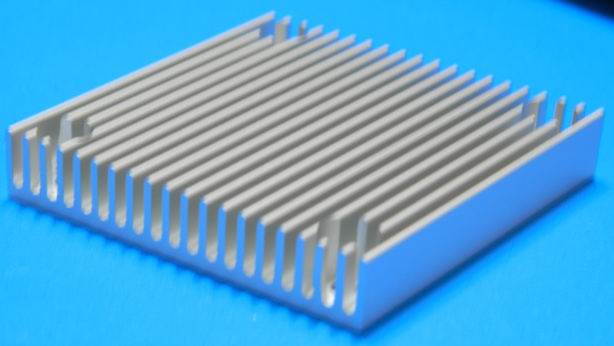

Product Name : HS-3126 Material : AL6063 Finish : Clean Size (WxHxL) : 61x13x61 mm Weight : 67 g
|

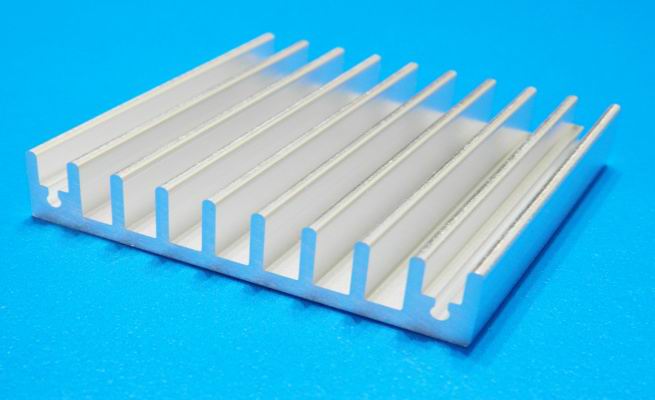

Product Name : HS-3045E Material : AL6063 Finish : Clean Size (WxHxL) : 65.2x13x65 mm Weight : 75 g
|
|

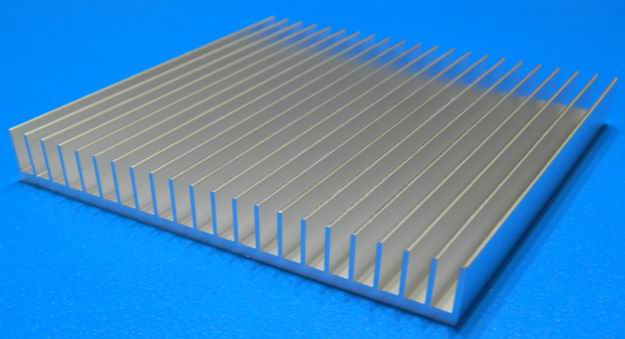

Product Name : HS-3107 Material : AL6063 Finish : Clean Size (WxHxL) : 95.5x14.3x95.5 mm Weight : 134 g
|

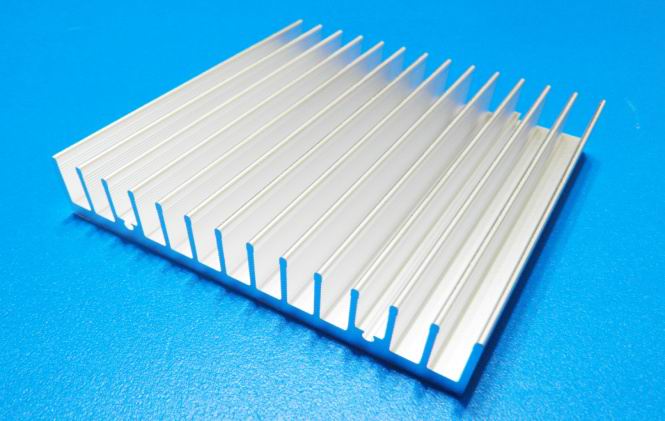

Product Name : HS-3105 Material : AL6063 Finish : Clean Size (WxHxL) : 110x21.8x110 mm Weight : 288 g
|

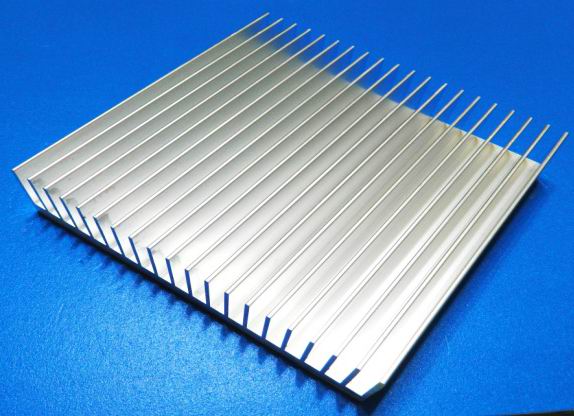

Product Name : HS-3091E Material : AL6063 Finish : Clean Size (WxHxL) : 153.5x34x150 mm Weight : 906 g
|
|

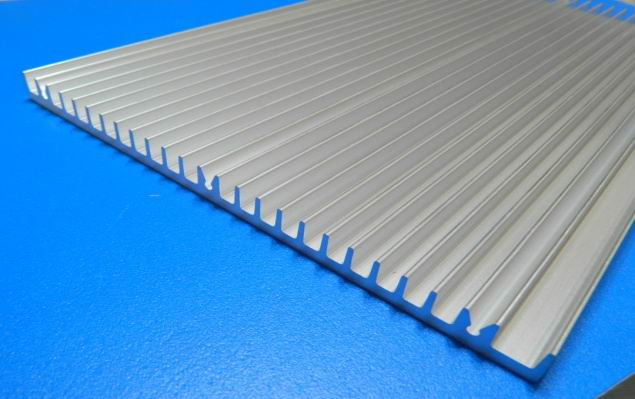

Product Name : HS-3103 Material : AL6063 Finish : Clean Size (WxHxL) : 180x12x180 mm Weight : 600 g
|
||
