AURICS Technology Co.

E-mail：aurics.chen@msa.hinet.net

TEL：+886-8-7932450  FAX：+886-8-7930328

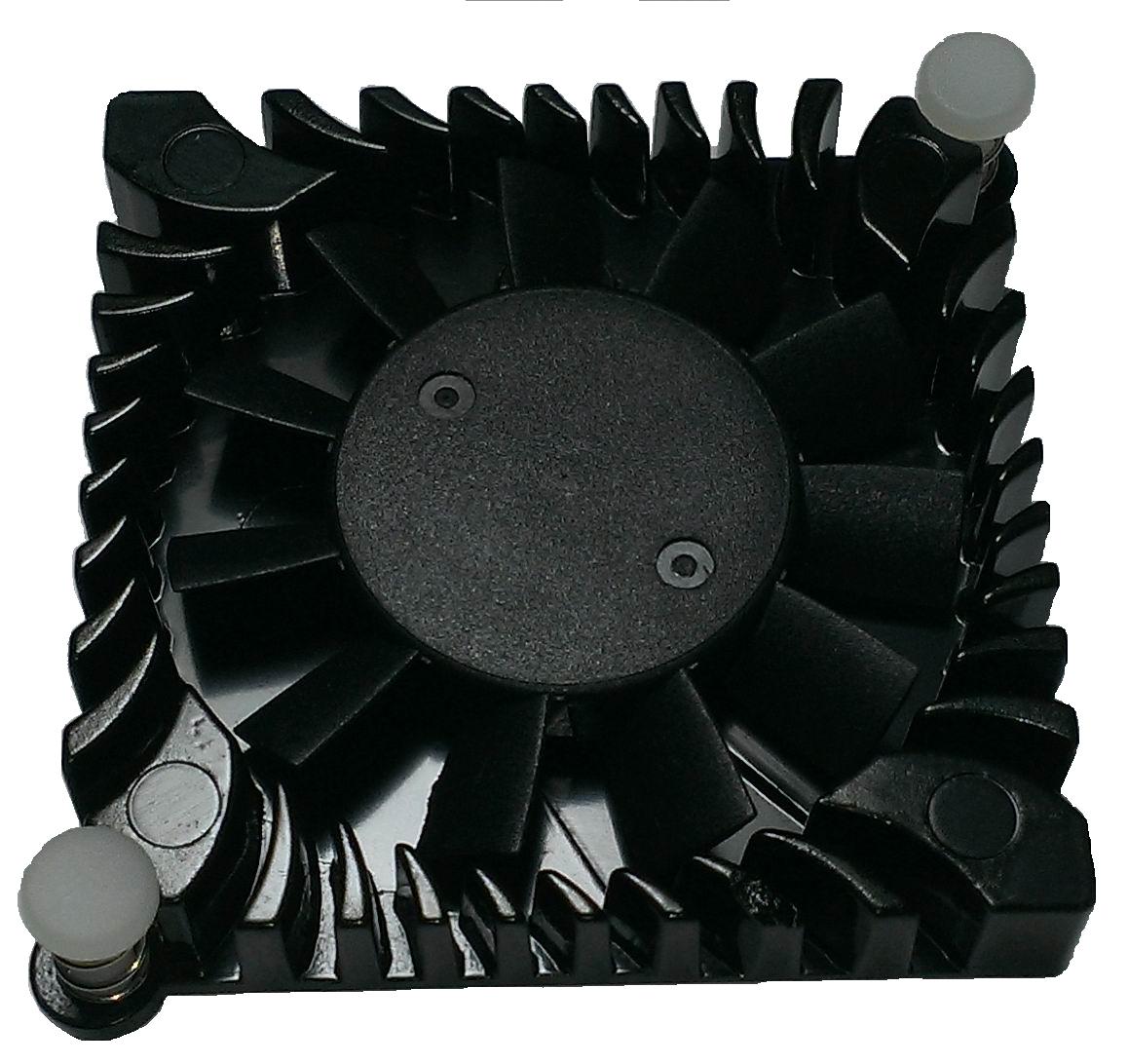

Cooler F408-2X

General Specification

◎  Insulation resistance：More than 10MΩ at 250 VDC.

◎  Dielectric strength：500 VDC. 60 sec or 600 VAC. 2 sec.

◎  Operating temperature：-10℃~70℃（normal humidity）

◎  Storage temperature：-40℃~75℃（normal humidity）

Material

◎  Heat Sink：Aluminum Alloy 6063 T5.

◎  Fan blade：UL 94V-0 Glass filled polyester（P.B.T.）

◎    Lead wire：UL 1061, 26AWG（＋：Red, －：Black）

Data Sheet

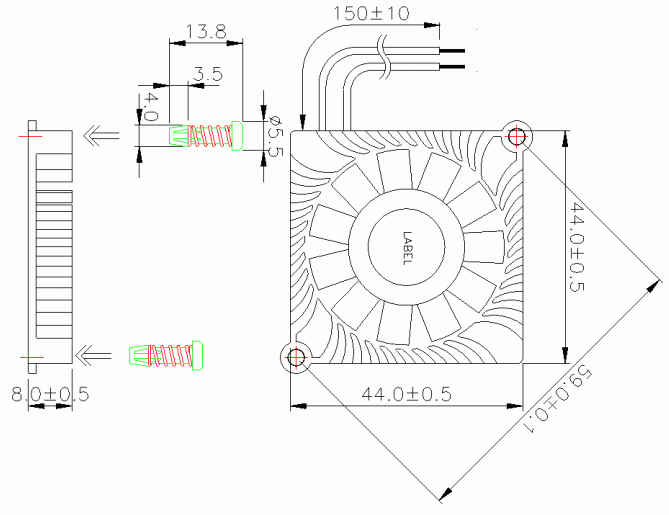

◎  Dimensions：44*44*8.5

◎  Total Weight：24 grams

◎  Rated Speed：5000 rpm

◎  Air Flow：5.1 CFM

◎  Static Pressure：0.09 inch-H₂O

◎  Thermal Pad：Customer specified

Safety Approvals

◎  UL；CUL；TUV ；CE
