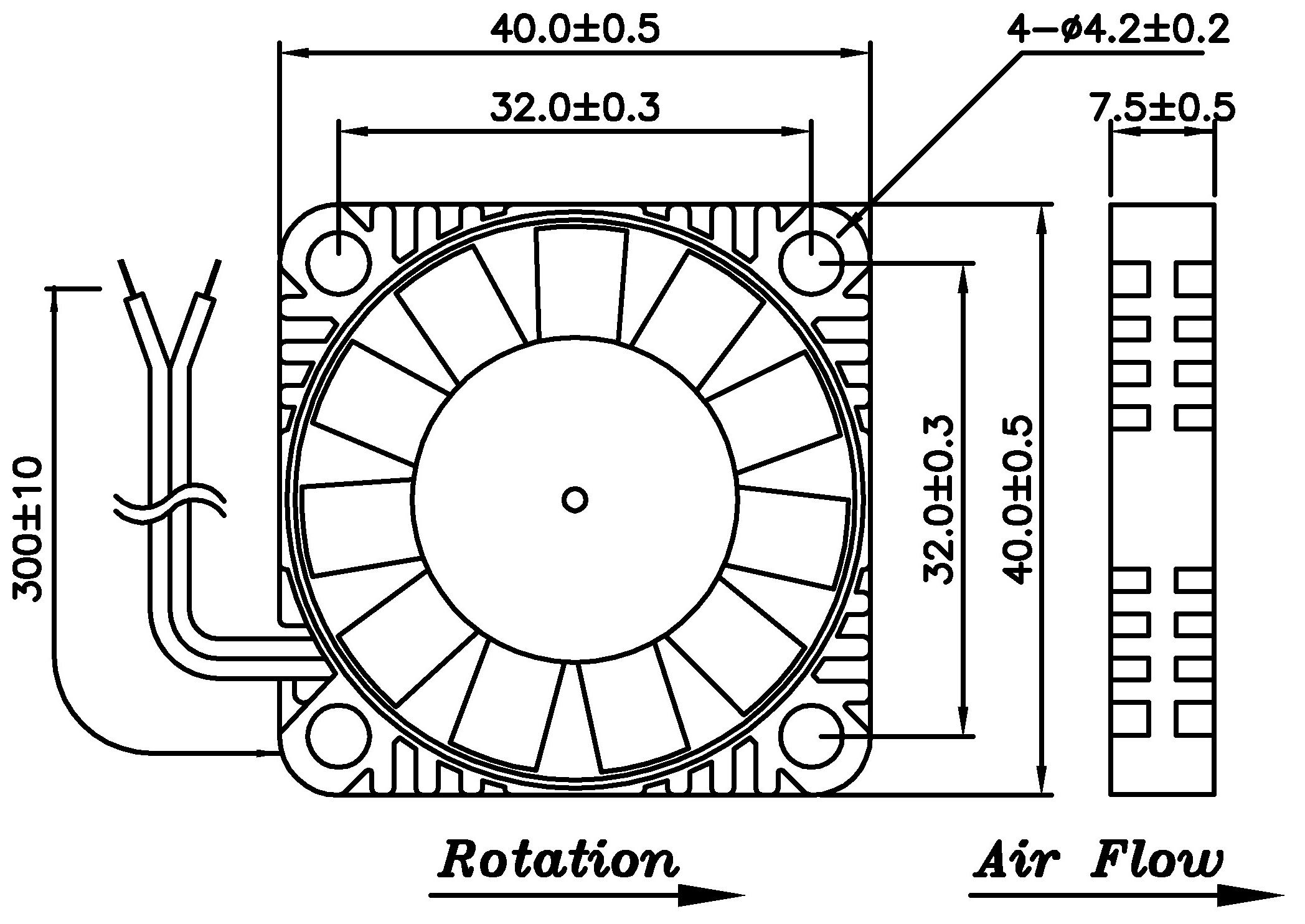

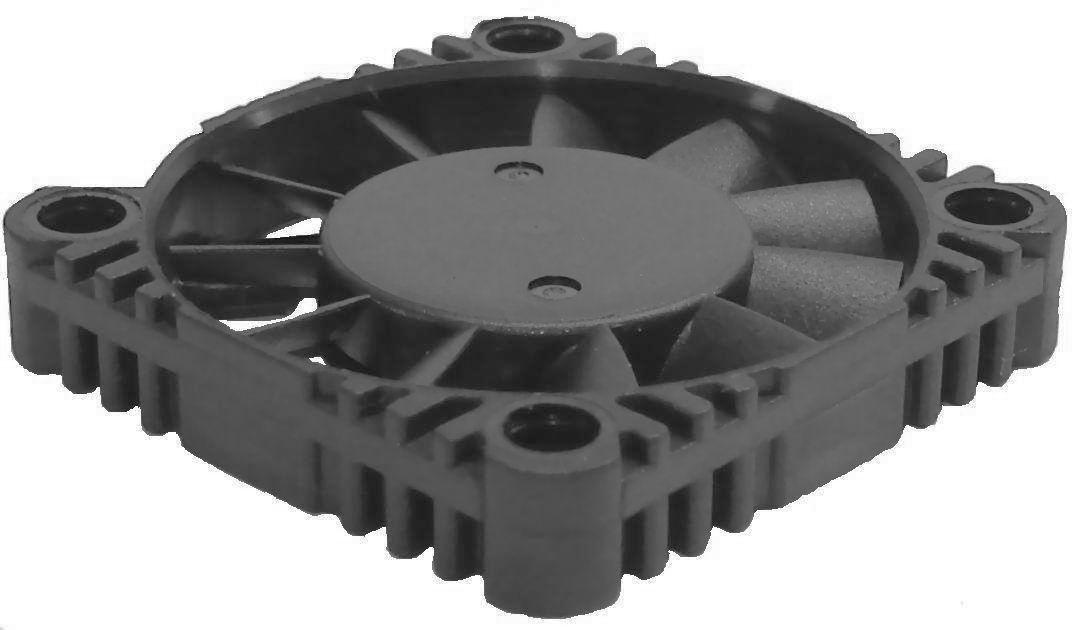

DC Brushless Fan 40*40*7mm
Safety approvals:■ UL ; ■ CUL ; ■ TUV ; ■ CE ; □ CSA
MODEL NO.
RATED VOLTAGE(V)
INPUT CURRENT(A)
INPUT POWER(W)
SPEED
(RPM)
MAX. AIR VOLUME(CFM)
MAX. STAT. PRESSURE (inch-H2O)
NOISE LEVEL(dBA)
WEIGHT
(G)
DFX400805M90T
5
0.27
1.35
6000
5.0
0.09
26.0
12
DFX400812M90T
1.08
※The Specifications of this catalogue will be updated and it`s according to the approval sheet.
※X=B、C or S(B:Two ball bearing;C:One ball bearing;S:Sleeve bearing)
